| DESCRIPTION |
|
| |

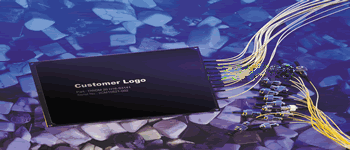

CA Optronics Group dense wavelength division
multiplexer (DWDM) is based on thin
film filter technology and high-reliability
micro optics packaging. We provides
high quality DWDM with flat channel
bandwidth, flexible channel configuration,
low insertion loss and high isolation.
It is designed to upgrade capacity easily
as the system grows. All our products
are epoxy-free in the optical path and
are used in high-power applications
in DWDM systems. |
|
| FEATURES |
|
| |
 |
Telcordia GR-1221 and GR-1209
Compliance |
| |
|
High Channel Isolation |
| |
|
Low Insertion Loss |
| |
|
Epoxy-Free Optical Path |
| |
|
Customized Specifications
Available | |
| APPLICATIONS |
|
| |
|
Dense WDM System |
| |
|
Longhaul/Metro Communication
Networks |
| |
|
Fiber Amplifier System |
| |
|
Fiber
Optic Instruments
| | |
|
SPECIFICATIONS
|
|
|
| |
| Parameter
|
MUX |
DEMUX |
MUX |
DEMUX |
| Operating Wavelength
|
C & L Bands |
| Channel Spacing |
100 GHz |
200 GHz |
| Channel Passband |
ITU 0.11 nm |
ITU 0.25
nm |
| Maximum Insertion
Loss |
3.7 dB
|
4.0 dB |
3.4 dB |
3.7 dB |
| Minimum Adjacent Channel
Isolation |
12 dB |
25 dB |
12 dB |
30 dB |
| Minimum Non-adjacent Channel
Isolation |
12 dB |
40 dB |
12 dB |
40 dB |
| Minimum Directivity |
50 dB |
60 dB |
50 dB |
60 dB |
| Minimum Return Loss |
45 dB |
|
Maximum Thermal Dependent Loss(relative to
23 ) |
0.25 dB
|
| Maximum Polarization
Dependent Loss |
0.15 dB |
0.10 dB |
| Maximum Polarization Mode
Dispersion |
0.20 ps |
0.10 ps |
| Maximum Channel
Uniformity |
1.5 dB |
| Maximum Passband
Ripple |
0.5 dB |
| Minimum Tensile
Load |
5 N |
| Minimum Power Handling
|
300 mW |
| Operating Temperature |
-5 ~ 70 |
| Storage Temperature |
-40 ~ 85 |
| Pigtail Type |
900 um, 2 mm, 3 mm |
| Connector Type |
FC, SC, MU, LC |

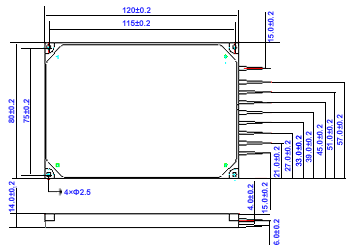

| Package Dimension(L x W x H) |
120 x 80 x 14 mm
(standard) | |
| |
|
